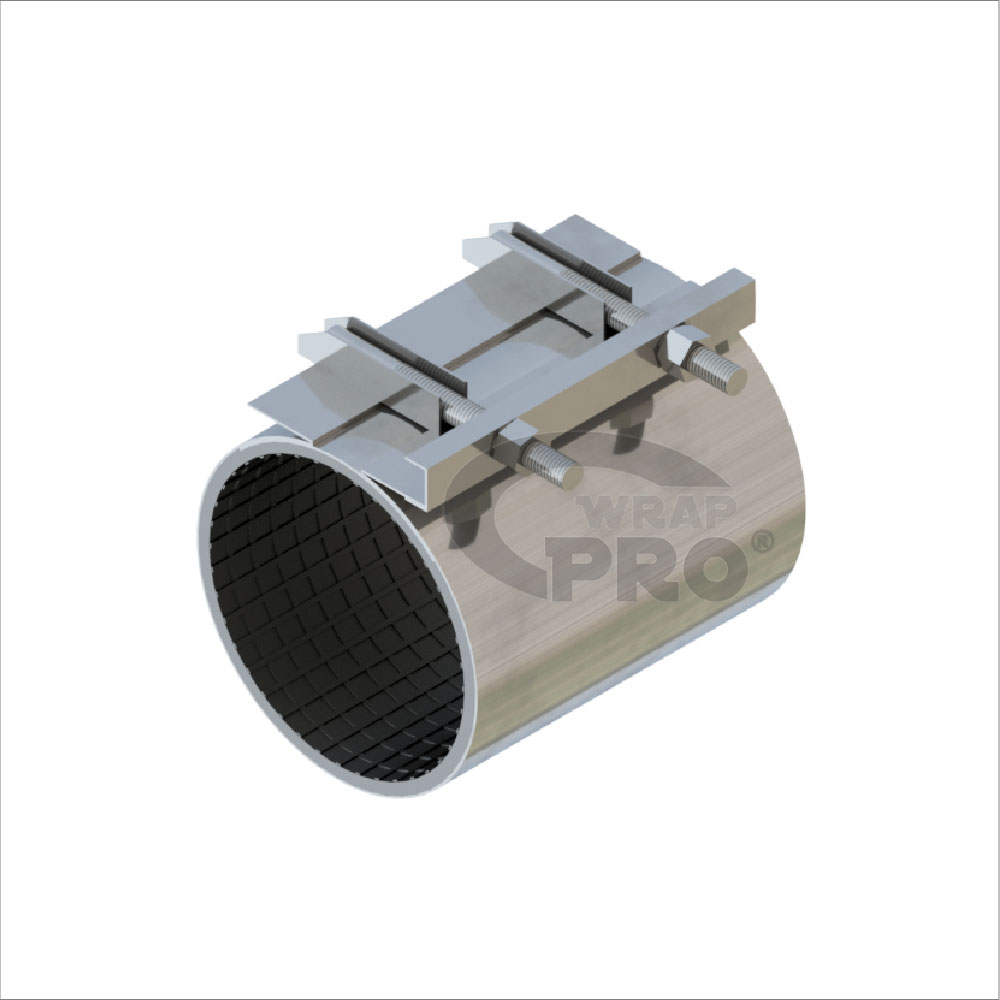

WRAP-PRO® Standard Repair Clamp
SGD 103.60
Description:
Standard 6in x 6in WRAP-PRO Standard Repair Clamp allows quick repair of minor pipe damages from cracks, corrosion or impact damages without expensive shutdown. Standard Repair Clamp features wide tolerances, making them suitable for use with most pipe materials. Suitable for pressure up to 20 Bar (290 psi).About the Product
WRAP-PRO Standard Repair Clamp allows quick repair of minor pipe damages from cracks, corrosion or impact
damages without expensive shutdown. Standard Repair Clamp features wide tolerances, making them suitable for
use with most pipe materials. Suitable for pressure up to 20 Bar (290 psi).
Features
• Light weight & economical Stainless Steel clamp
• Easy & simple installation with no special tools
• Repair small holes and cracks
• Suitable for use with most pipe materials
Application
• Clean & sand repair area
• Place repair clamp over the damaged area
• Position the lugs with bolt and nut
• Ensure proper alignment and tighten all bolts & nuts
| ITEM CODE | WRCS150150B |
|---|---|
| PIPE OD (mm) | 168.3 |
| NOMINAL PIPE SIZE (mm) | 150 |
| NOMINAL PIPE SIZE (inch) | 6 |
| CLAMPING RANGE (mm) | 166 – 177 |
| B (mm) | 150 |
| D (mm) | 178 |
| E (mm) | 255 |
| BOLT SIZE | M10 |
| BOLT TORQUE (Nm) | 90 |
| WORKING PRESSURE (bar) | 14 |
